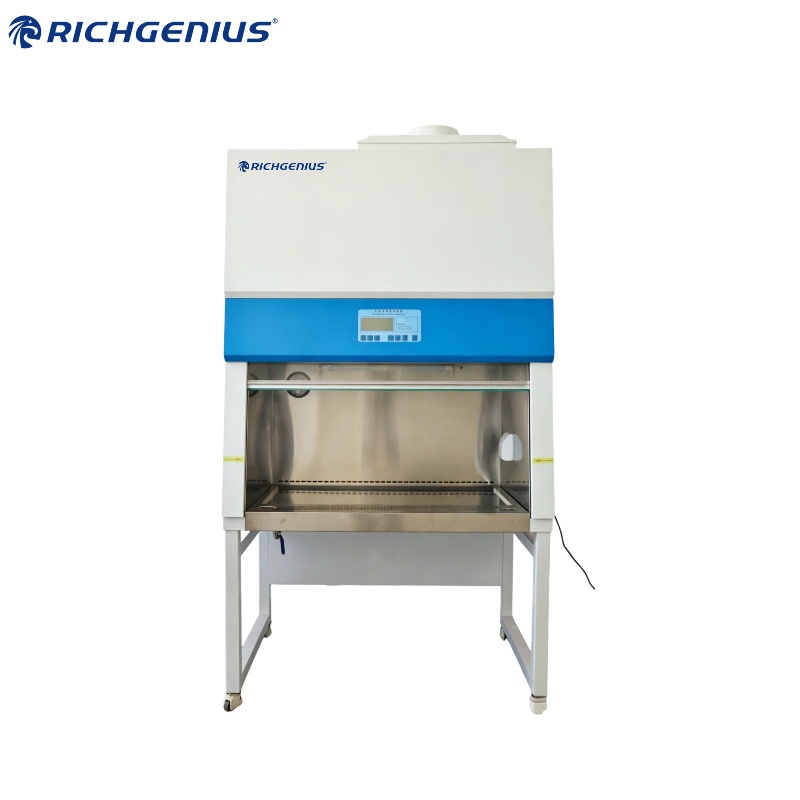

Biosafety Cabinet B2
Features
1. Air curtain isolation design prevents internal and external cross contamination, with 100% air flow discharged , negative pressure vertical flow, and no need to install pipelines.
2. The front glass can be moved up and down allows for arbitrary positioning which is easy to operate, and complete closure for sterilization. The positioning height limit alarm prompts.
3. The power output socket in the work area is equipped with waterproof sockets and sewage outlets, providing great convenience for operators.
4. HEPA filter is installed at the exhaust area to control emission pollution.
5. The working area is made of high-quality 304 stainless steel,which is smooth, seamless, and has no dead corners. It can be easily and thoroughly disinfected to prevent corrosion and disinfectant erosion.
6. Controlled by an LCD panel with built-in UV light protection device,it can only be opened when the safety door is closed.
7. Equipped with DOP test port and built-in differential pressure gauge.
8. 10 ° inclination angle, in line with human body design concepts.
Specification
Model | BSC-1000II-B2 | BSC-1300II-B2 | BSC-1600II-B2 |
Cleanliness | Cleanliness:HEPA: ISO 5 (Class100) | ||
Number of colonies | ≤0.5pcs/dish hour(ф90mm culture plate) | ||
Wind speed | Average suction wind speed: ≤0.55+0.025m/s Average descending wind speed: ≥0.3+0.025m/s | ||
Filtration Efficiency | HEPA of borosilicate glass fiber material: ≥99.995%, @0.3um | ||
Noise | ≤65dB(A) | ||
Vibration half peak | ≤5um | ||
Power AC single phase | 220V/50Hz | ||
Max .power | 1400w | 1600w | 1800w |
Weight | 210kg | 250kg | 270kg |
Internal size(mm) | 1040*650*620 | 1340*650*620 | 1640*650*620 |
External size(mm) | 1200*800*2270 | 1500*800*2270 | 1800*800*2270 |
HEPA filter and quantity | 980*490*50*1 520*380*70*1 | 1280*490*50*1 820*380*70*1 | 1580*490*50*1 1120*380*70*1 |
LED/UV lamp | 12W*2/20W*1 | 20W*2/30W*1 | 20W*2/40W*1 |
