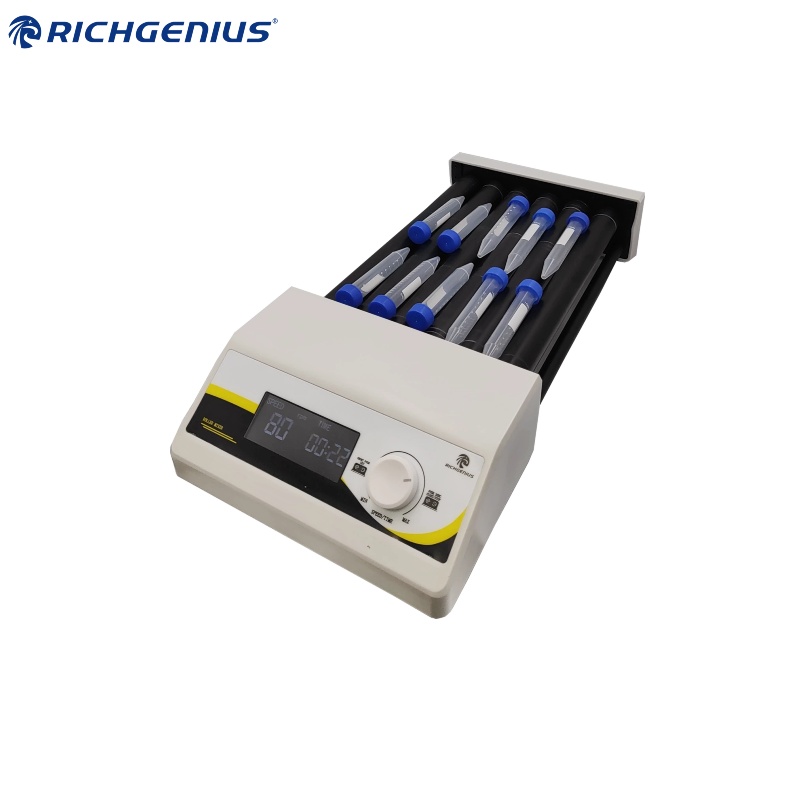

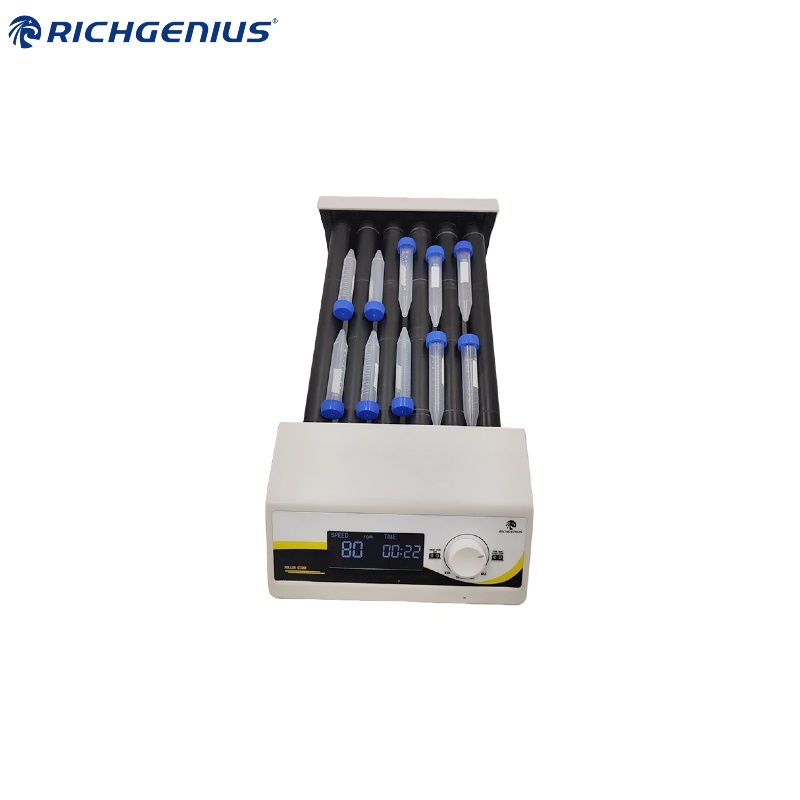

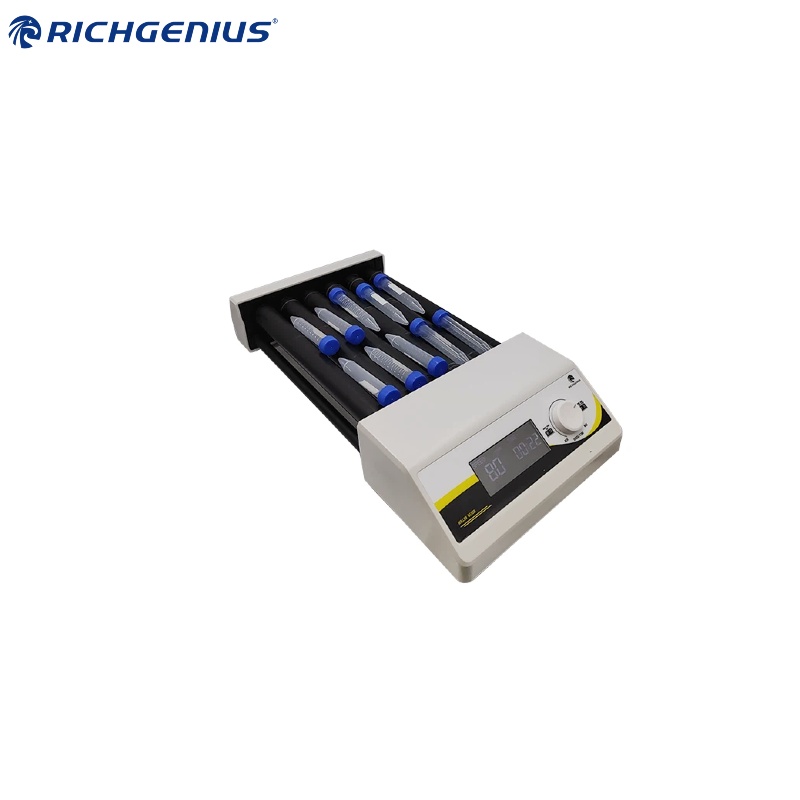

Roller Mixer
Roller Mixer The product is used for mixing and blending the blood,powder regents ,total blood control materials in the anticoagulation tube or bottle ,it proved to be more accurate and effective than the manual mixing by the big hospital all of china.according to different requirements,the product is more scientific and its speed is adjustable .it is an ideal instrument for clinical lab.Specification:Model RM-6HRM-6HDRM-6FRM-6FDsupply voltageDC12V1AThe power of the machine12
Roller Mixer
The product is used for mixing and blending the blood,powder regents ,total blood control materials in the anticoagulation tube or bottle ,it proved to be more accurate and effective than the manual mixing by the big hospital all of china.according to different requirements,the product is more scientific and its speed is adjustable .it is an ideal instrument for clinical lab.
Specification:
Model | RM-6H | RM-6HD | RM-6F | RM-6FD |
supply voltage | DC12V1A | |||
The power of the machine | 12W | |||
Case protection grade | IP40 | |||
Range of speeds | 20-80rpm | |||
Speed accuracy | ±5rpm | |||
Roller steering | clockwise | |||
The number of roller | 6 | |||
Specification ige tube specification applicable | Φ 6- Φ 34mm; place as demand | |||
Maximum number of centrifuge tubes | Tube length less than 145:10pcs; tube length more than 145:5pcs | |||
Rolling shaft size | Φ29x280mm | |||
Timed range | Without | 0-99h59min | Without | 0-99h59min |
amplitude | 0 | 25mm | 0 | 25mm |
The center spacing of the roller | 34mm | |||
Motor type | The DC is brushed (2-wire) | Brushless DC (6-wire) | The DC is brushed (2-wire) | Brushless DC (6-wire) |
Allowed for ambient temperature and humidity | 5-40℃ 35-80%RH | |||
Maximum load bearing | 1KG | |||
Machine size | 485*233*88（mm） | |||
packing measurement | 544*294*140（mm） | |||
| 2.6KG | |||
rough weight | 3.3KG | |||
