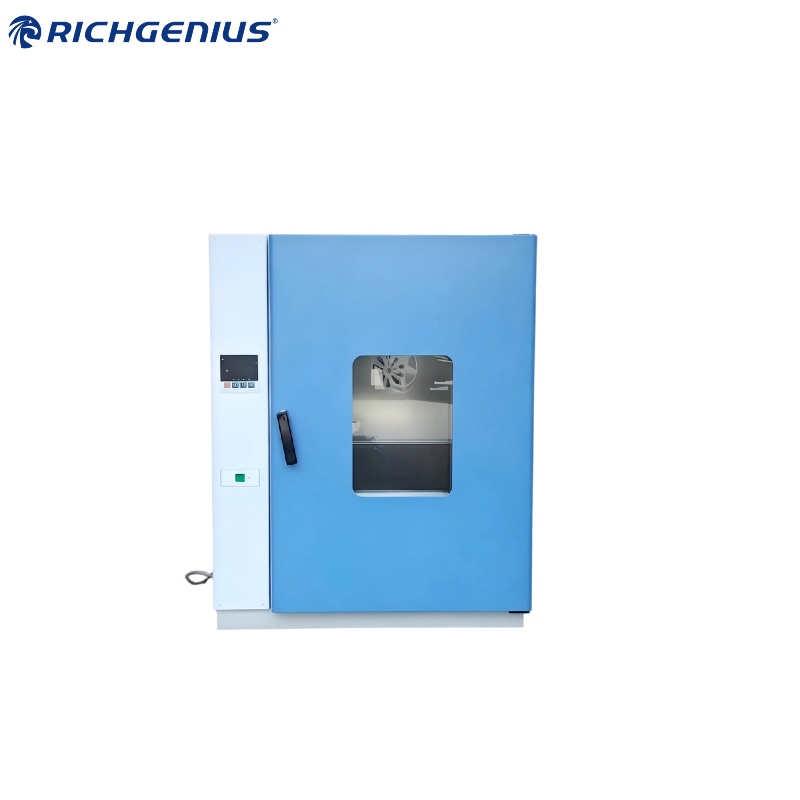

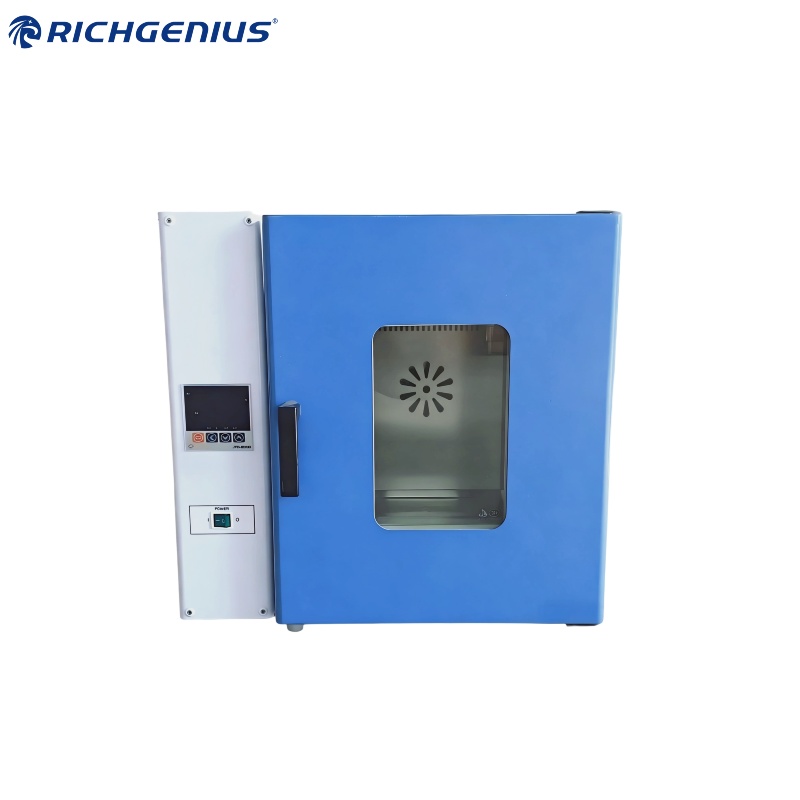

Laboratory Oven
Features
Microprocessor control,
With double glass window
Digital display setting and actual temperature
Digital display running timer
PID self-tuning, over temperature alarm
Automatic alarm after operation
Stainless-steel interior, chamber corners are semicircle
Specification
Model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A | DHG-9624A |
Volume | 40L | 70L | 140L | 225L | 600L |
Working size(mm) | 350*350*350 | 450*350*450 | 550*450*550 | 500*600*750 | 800*800*1000 |
Power | 500W | 1000W | 1500W | 2000W | 5000W |
Temperature range | 50~300℃ | ||||
Temperature resolution | 0.1℃ | ||||
Temperature fluctuation | ±1℃ | ||||
Timer | 0-999min | ||||
Voltage | 110V 60Hz /220V 50Hz | ||||
Dimension(mm) | 620*630*520 | 620*710*620 | 720*780*750 | 770*840*980 | 940*1090*1380 |
Package(mm) | 680*720*610 | 720*750*740 | 830*860*870 | 900*870*1130 | 1000*1190*1510 |
G.W./N.W. | 52/38kg | 62/48kg | 86/64kg | 111/89kg | 227/200kg |
