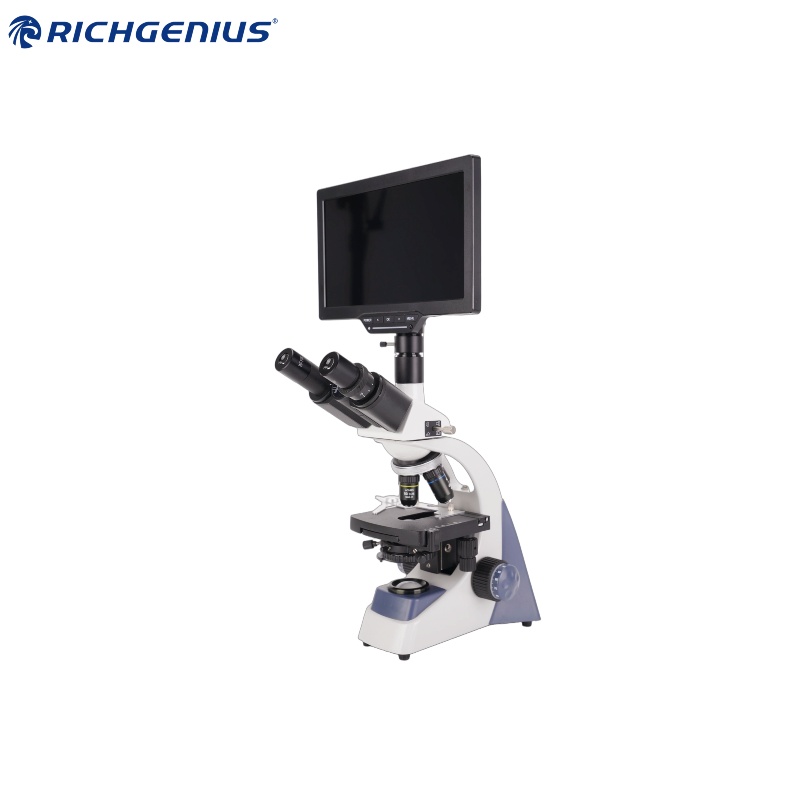

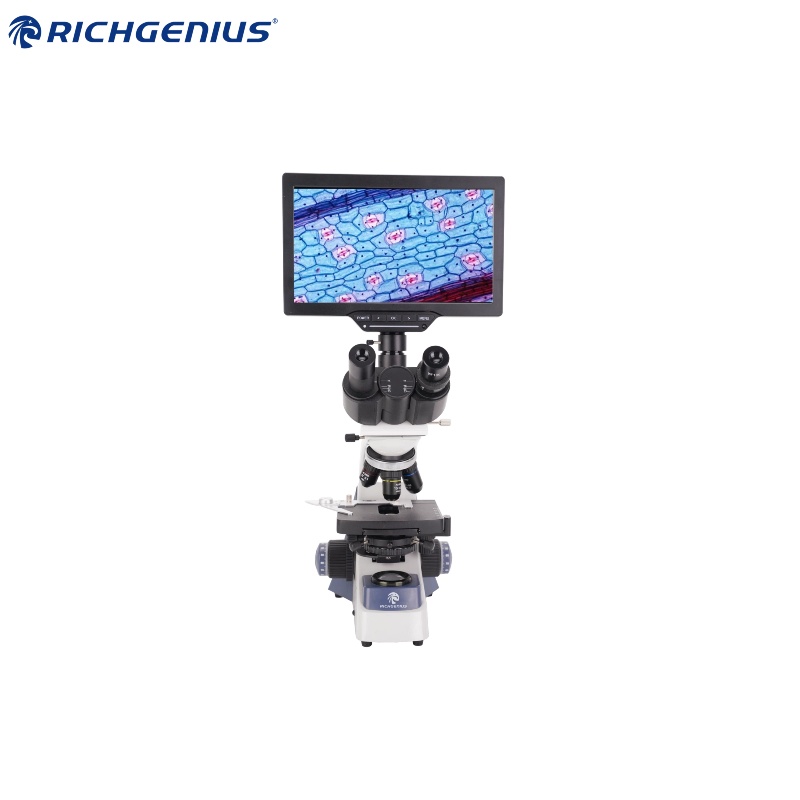

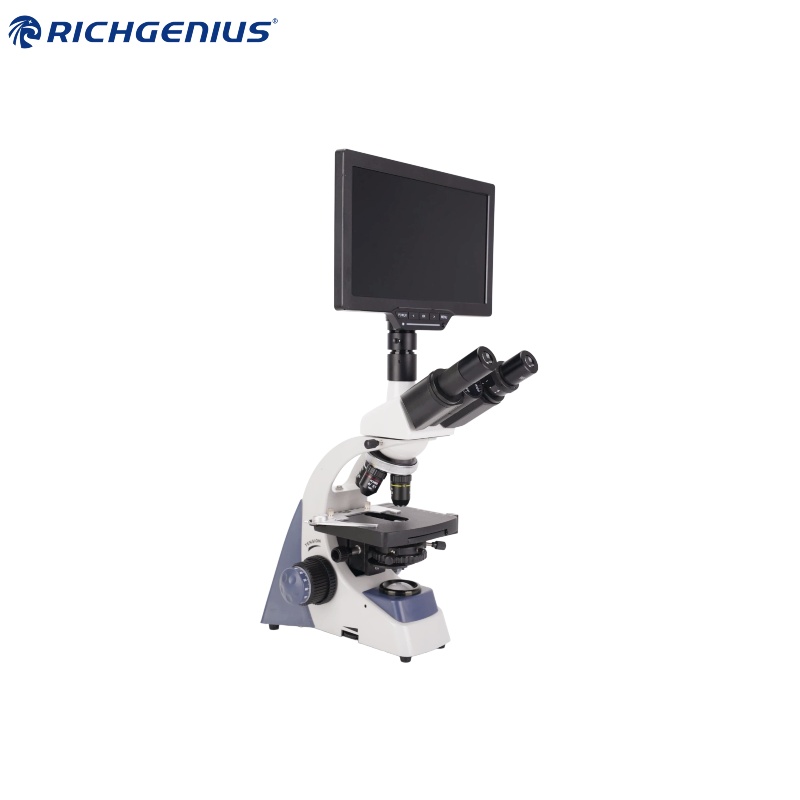

Trinocular Microscope with Screen RG-2005T

Trinocular Microscope with Screen RG-2005T

Features

Eyepiece:WF10X

Objective:4X, 10X, 40X (spring loaded), 100X (spring loaded, oil immersion).

Mechanical tube length: 160mm

Conjugated distance between object and image: 195mm

Viewing heads and microscope

Nosepiece

ABBE condenser

Focusing system

Standard Parameter

Articulated free trinocular head, 30° inclined and 360° rotatable. The height of the vertical viewing tube can be adjusted to fit the same optical path length with the inclined tube.

The vertical tube is usually used as following:

1.Insert the Eyepiece Linker and a eyepiece to observe for the second viewer;

2.Insert the Eyepiece Linker and an electron eyepiece. Connecting the  electron  eyepiece  with PC, the micro-image will be displayed on the screen. User-friendly sophisticated micro-image process software help you to preview，measure，compare，count，save and delete.

3.Insert the CCD camera with the CCD Linker. Connecting the CCD camera with the TV, the micro-image will be showed for teaching.

If only observe from the inclined tube, the rod on the right of the viewing head should be pushed in. It will make the viewing field brighter. If the micro-image should be transmitted from the vertical tube, pull the rod out.

Screen Parameter

Screen size :10.1 inch

Screen resolution:1024*600

Zoom rate:1600X

Image sensor:1/3 inch(BSI)

USB resolution:1080P20,720P30,WVGAP60

Pixel size:2um*2um

Working distance:1cm~5m

Video resolution:1080P30,720P60

With C-mount connector
