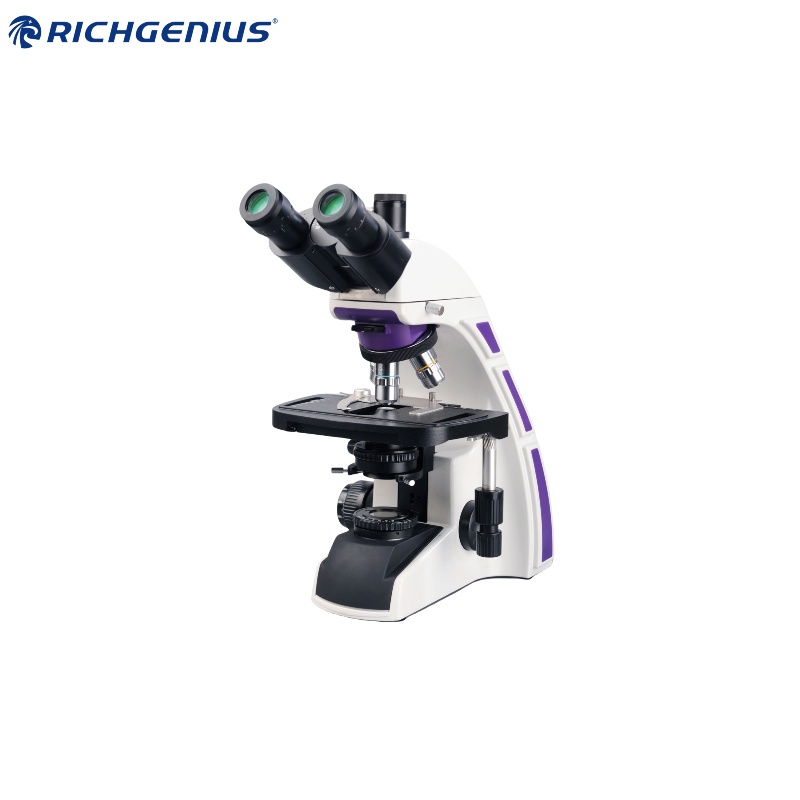

Trinocular Microscope RG-2016 series

Trinocular Microscope RG-2016 seriesFeaturesOptical System: Infinity achromatic correction optical system and common optical system Viewing Head:Articulated free binocular or trinocular head, 30°inclined, interpupillary distance 48-75mm Eyepiece:PL10X/23mm high eyepoint eyepiece, diopter adjustment ±5,tubeΦ30mm Objective:Plan achromatic objectives 4X,10X,40X,100X Nose piece: Backward quintuple or quadruple objective nose piece Condenser: Abbe condenser set Stage: 220X148mm X-

Send Email

Product Introduction

Features

Optical System: Infinity achromatic correction optical system and common optical system

Viewing Head:Articulated free binocular or trinocular head, 30°inclined, interpupillary distance 48-75mm Eyepiece:PL10X/23mm high eyepoint eyepiece, diopter adjustment ±5,tubeΦ30mm

Objective:Plan achromatic objectives 4X,10X,40X,100X

Nose piece: Backward quintuple or quadruple objective nose piece

Condenser: Abbe condenser set Stage: 220X148mm X-axis low hand position double mechanical

stage(steel wire transmission): 76X50mm, precision 0.1mm, damped double slide clamp

Focusing System: Coaxial coarse and fine focus knobs, precision 0.002mm

Illumination: 3W LED lamp with Kohler illumination system

Specification

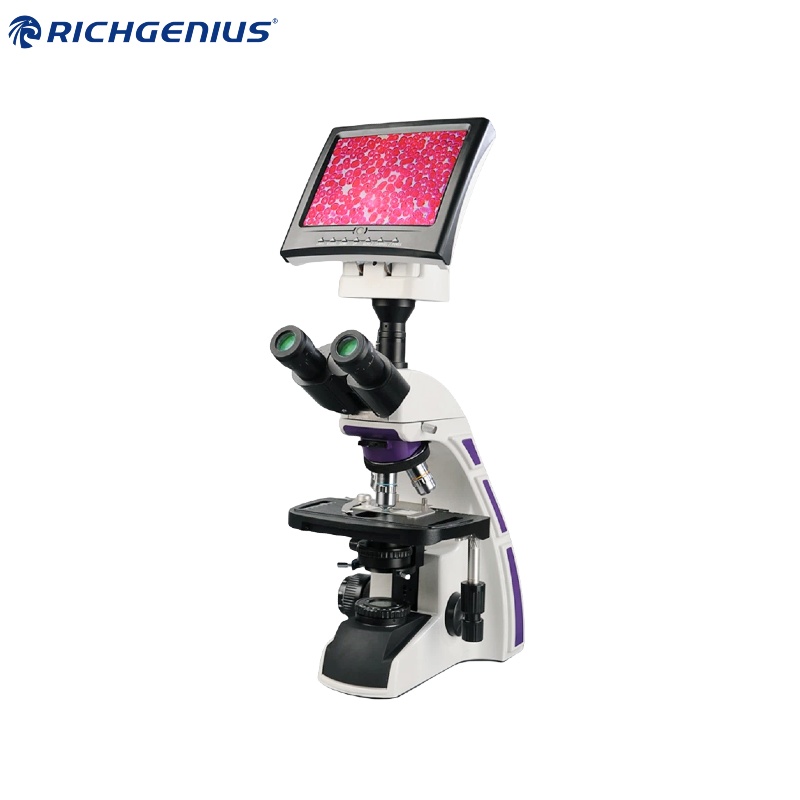

Specification		RG-2016T	RG-2016T LCD	RG-2016B
Viewing Head	Articulated free binocular head, 30°inclined, interpupillary distance 50-75mm			－
Viewing Head	Articulated free trinocular head, 30°inclined, interpupillary distance 50-75mm	－	－
Eyepiece	PL10X/23mm high eyepoint eyepiece, diopter adjustment ±5,tubeΦ30mm	－	－	－
Objective	Plan achromatic objectives 4X,10X,40X,100X	－	－	－
Stage	220X148mm X-axis low hand position double mechanical stage(steel wire transmission),damped double slide clamp	－	－	－
Stage	76X50mm, precision 0.1mm,	－	－	－
Condenser	Abbe condenser	－	－	－
Focusing	Coaxial coarse and fine focus knobs, precision 0.002mm	－	－	－
Light Source (Built-in Adjustable Brightness)	3W LED lamp with Kohler illumination system	－	－	－
