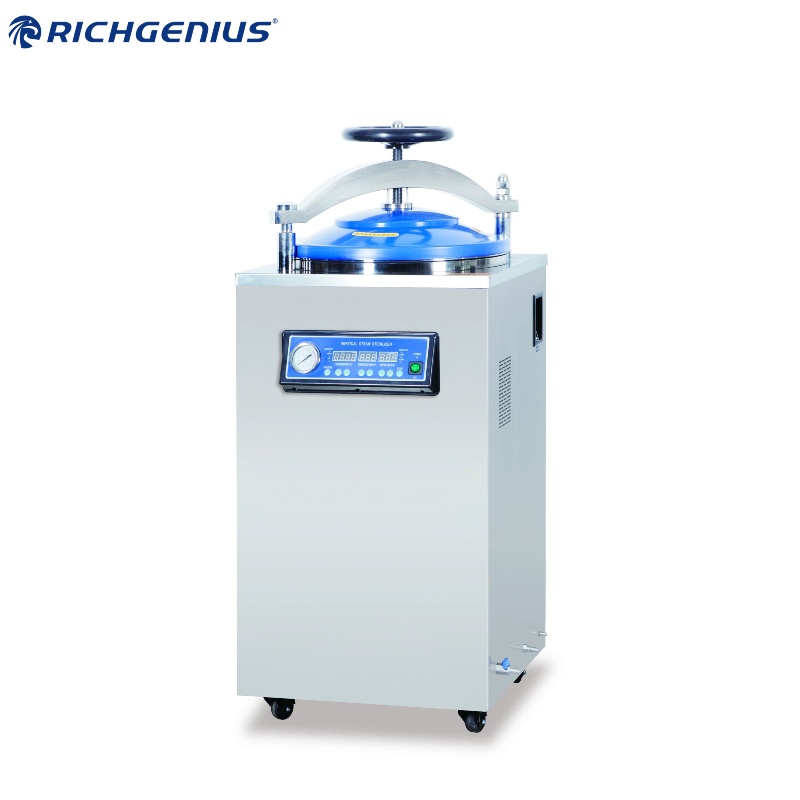

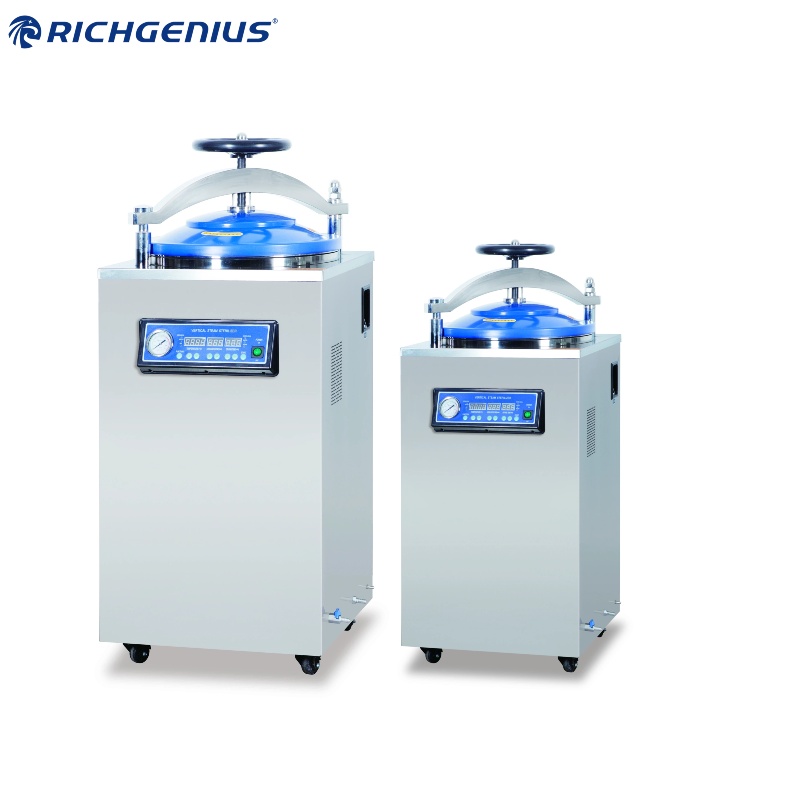

Vertical Steam Steam Sterilizer RGL-35B
Autoclave Vertical Steam Steam Sterilizer Digital Displayed Automatic TypeFeaturesHand wheel translation and quick opening structureHigh quality stainless steel materialMicrocomputer automatic control, arbitrary setting sterilization parameters.Safety interlocking deviceDigital display and Touch buttonsStandard test interfaceSelf-expanding sealWith automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection;
Autoclave Vertical Steam Steam Sterilizer
Digital Displayed Automatic Type
Features:
Hand wheel translation and quick opening structure
High quality stainless steel material
Microcomputer automatic control, arbitrary setting sterilization parameters.
Safety interlocking device
Digital display and Touch buttons
Standard test interface
Self-expanding seal
With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
With stainless steel bucket or basket
Buzzer reminder after sterilization, automatic stop.
Automatic discharge of cold air,automatic steam exhaust after sterilization.
*Optional external printer
Specification:
Model | RGL-35B | RGL-50B | RGL-75B | RGL-100B |
Volume | 35L | 50L | 75L | 100L |
Power | 3.5kW | 3.5kW | 4.5kW | 4.5kW |
Voltage | AC 220V、50HZ | |||
Design pressure | 0.25Mpa | |||
Design temperature | 139℃ | |||
Rated working pressure | 0.22Mpa | |||
Rated working temperature | 134℃ | |||
Sterilization temperature | 116℃~134℃ | |||
Sterilization time setting range | 4~120 min | |||
Drying time setting range | 0~240min | |||
Chamber volume | Ø350×400 | Ø350×525 | Ø400×625 | Ø450×650 |
Bucket dimension | Ø330×320 | Ø330×480 | Ø380×540 | Ø430×550 |
Basket dimension（optional） | Ø320×350 | Ø320×240×2 | Ø360×280×2 | Ø410×300×2 |
Outer dimension | 480×480×1000 | 480×480×1120 | 525×525×1190 | 555×555×1250 |
Packing size (L× W× H )mm | 580×630×1130 | 580×630×1230 | 630×680×1290 | 690×650×1410 |
