Tabletop Steam Sterilizer Z Series (Pulsating Vacuum Automatic Door)

Tabletop Steam Sterilizer Z Series (Pulsating Vacuum Automatic Door)Tabletop steam sterilizers are suitable for high-temperature and high-pressure sterilization of items such as surgical instruments, dental appliances, dressings, glassware, and rubber products. With a compact structure and easy operation, they are widely used in dental clinics, hospital departments, outpatient clinics, community health service centers, beauty institutions, and laboratories. They ar

Send Email

Product Introduction

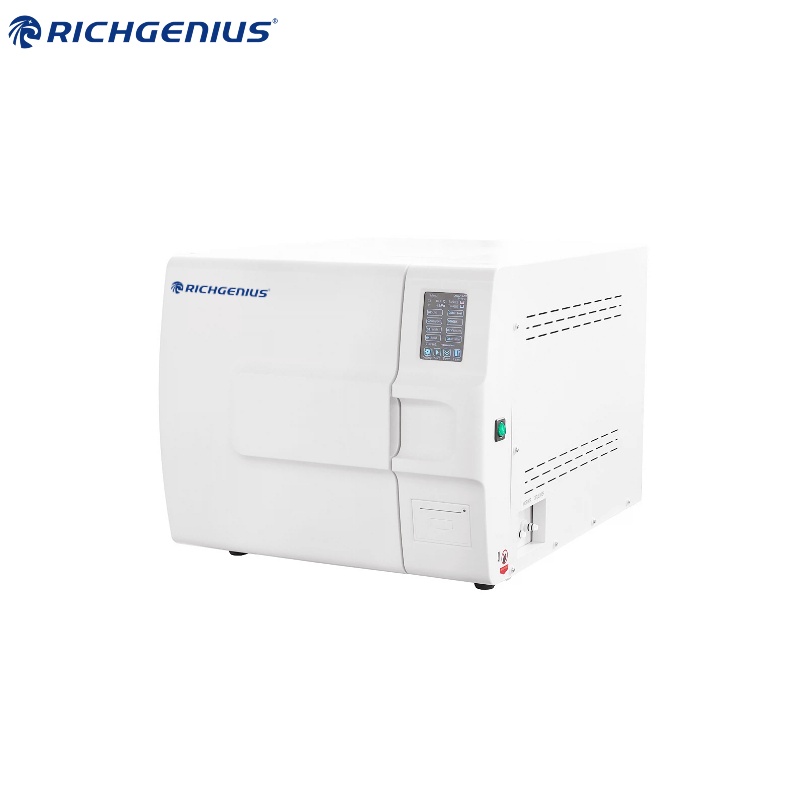

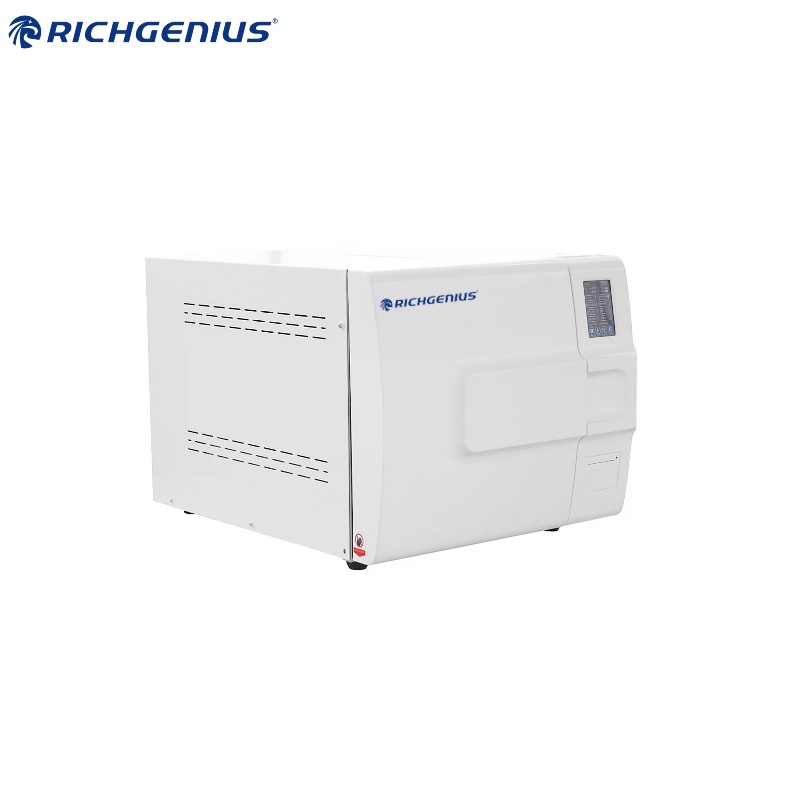

Tabletop Steam Sterilizer Z Series

(Pulsating Vacuum Automatic Door)

Tabletop steam sterilizers are suitable for high-temperature and high-pressure sterilization of items such as surgical instruments, dental appliances, dressings, glassware, and rubber products. With a compact structure and easy operation, they are widely used in dental clinics, hospital departments, outpatient clinics, community health service centers, beauty institutions, and laboratories. They are an ideal choice for daily rapid sterilization in small and medium-sized medical institutions

Features

4.7-inch full-color LED touch screen

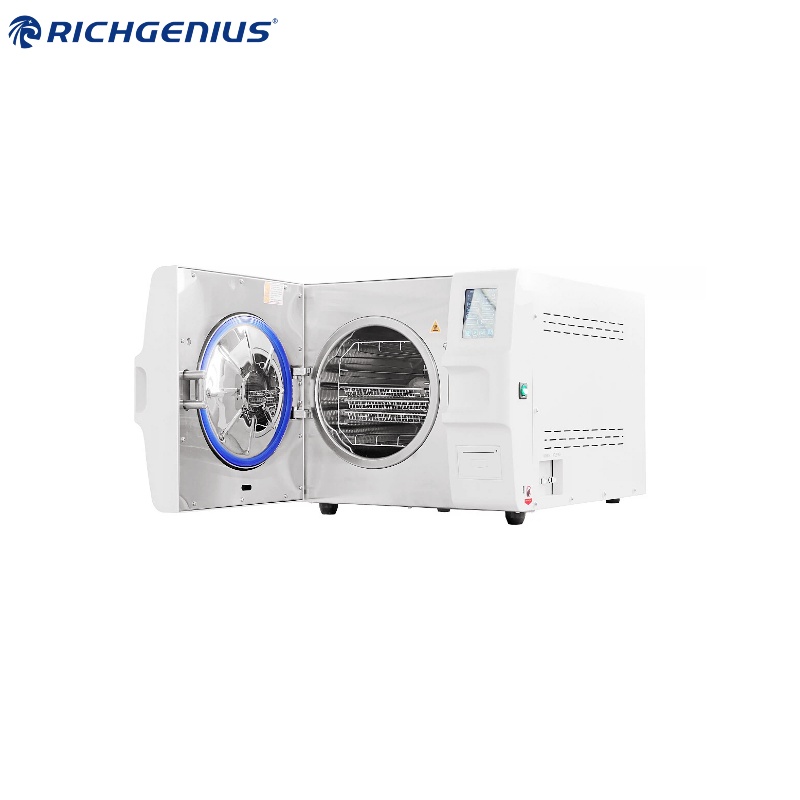

Automatic door opening and closing structure

Electronic safety door interlock

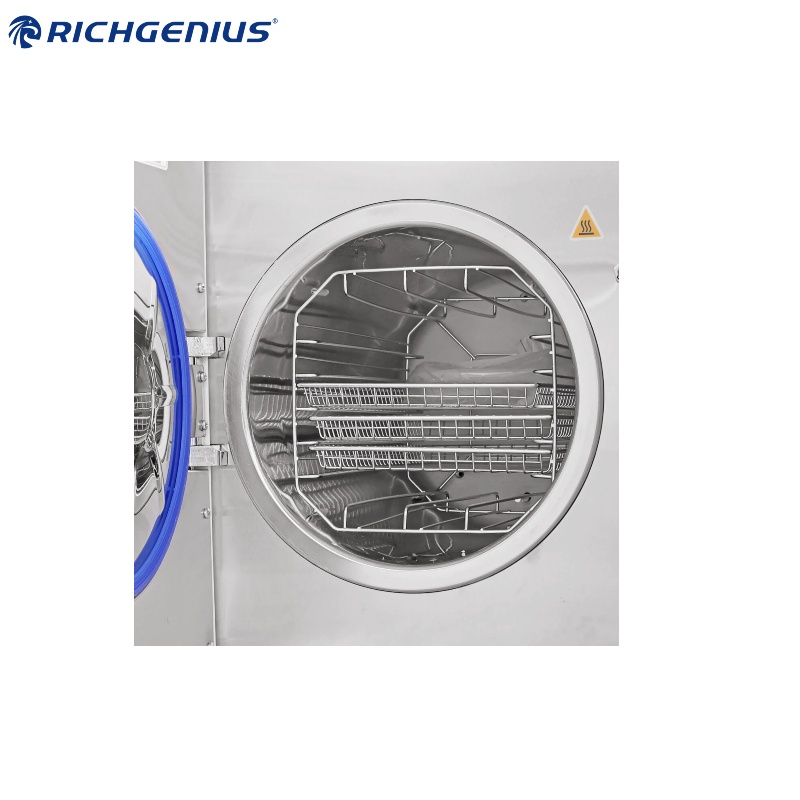

High-quality stainless steel cavity and sealing cover

Microcomputer control, full-process automatic control, and

automatic fault detection

High-altitude adaptive system to realize automatic atmospheric

pressure calibration

5 preset programs and 3 test programs

Equipped with a standard test interface

Compliant with European Class B standards, with 1-6 adjustable pulse vacuums

The machine is equipped with comprehensive automatic protection

functions and an emergency stop

Buzzer reminder upon completion of sterilization, with automatic shutdown

Built-in high-efficiency independent steam generator for rapid and stable

supply of saturated steam

Built-in printer and USB function

Optional water quality testing function

Specification

Model	RGT-18Z	RGT-23Z	RGT- 45Z	RGT-50Z
Volume	18L	23L	45L	50L
Power	2.2KW	2.2KW	3.5KW	3.5KW
Voltage	AC 110V 60HZ or AC 220V 50HZ
Design pressure	-0.1~0.25MPa
Design temperature	139°C
Rated working pressure	0.22MPa
Rated working temperature	134°C
Sterilization temperature range	116 ～ 134°C
Sterilization time range	4 ～ 120 min
Drying time range	0 ～ 240 min
Chamber size (mm)	φ250x360	φ250x450	φ320x615	φ320x665
Overall dimensions (mm)	710x505x450	710x505x450	850x660x570	850x660x570
Packing dimensions (L×W×H) (mm)	790x590x520	790x590x520	980x770x720	980x770x720
Gross weight/Net weight	65/53kg	70/58kg	127/102kg	131/106kg
