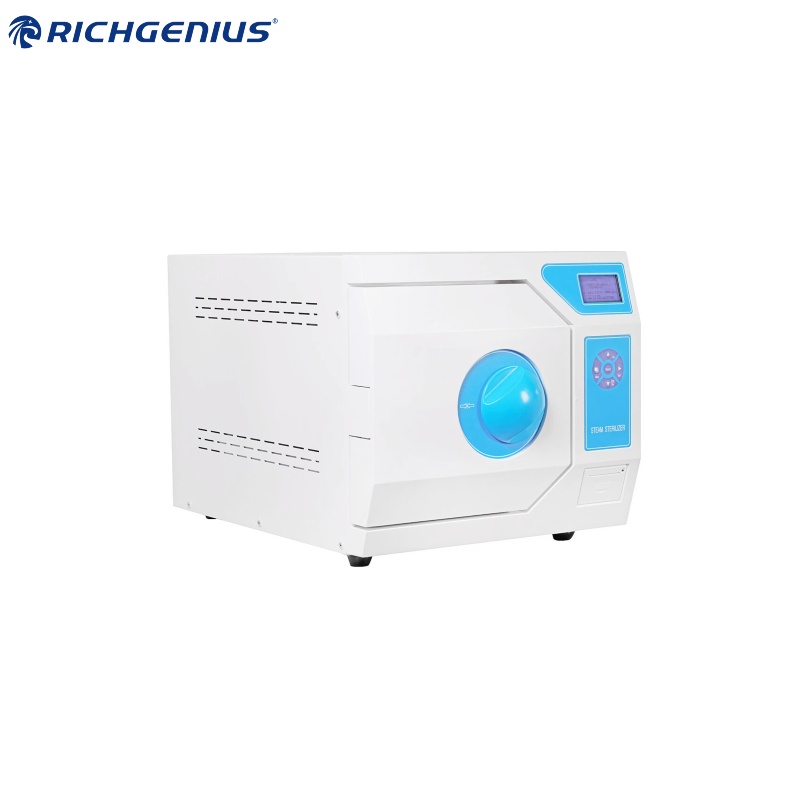

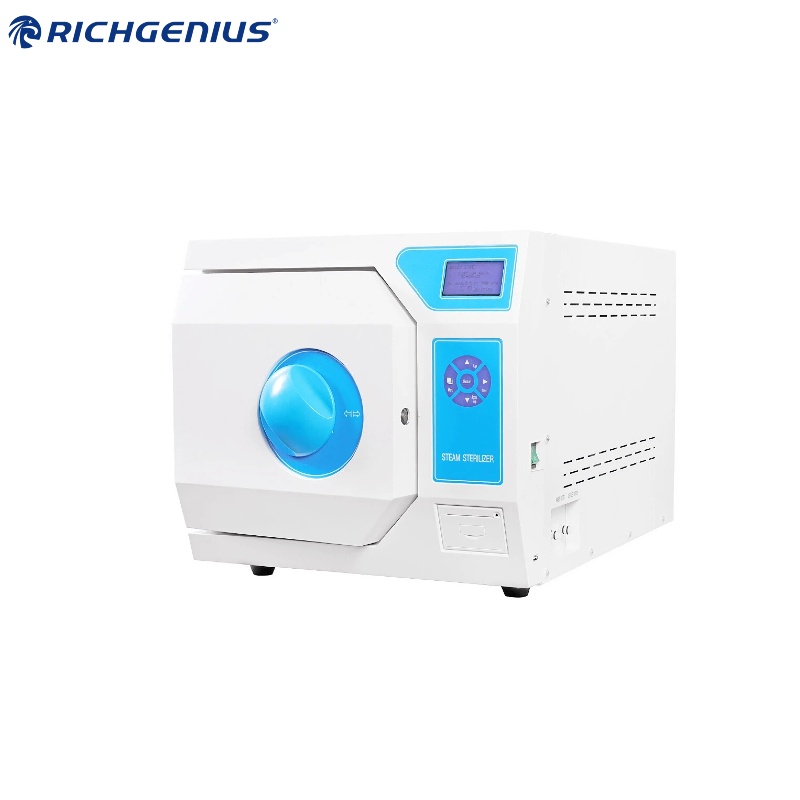

Tabletop Steam Sterilizer B Series (Pulsating Vacuum)
Tabletop Steam Sterilizer B Series (Pulsating Vacuum)Tabletop steam sterilizers are suitable for high-temperature and high-pressure sterilization of items such as surgical instruments, dental appliances, dressings, glassware, and rubber products. Featuring a compact structure and easy operation, they are widely used in dental clinics, hospital departments, outpatient clinics, community health service centers, beauty institutions, and laboratories, making them an ideal choice

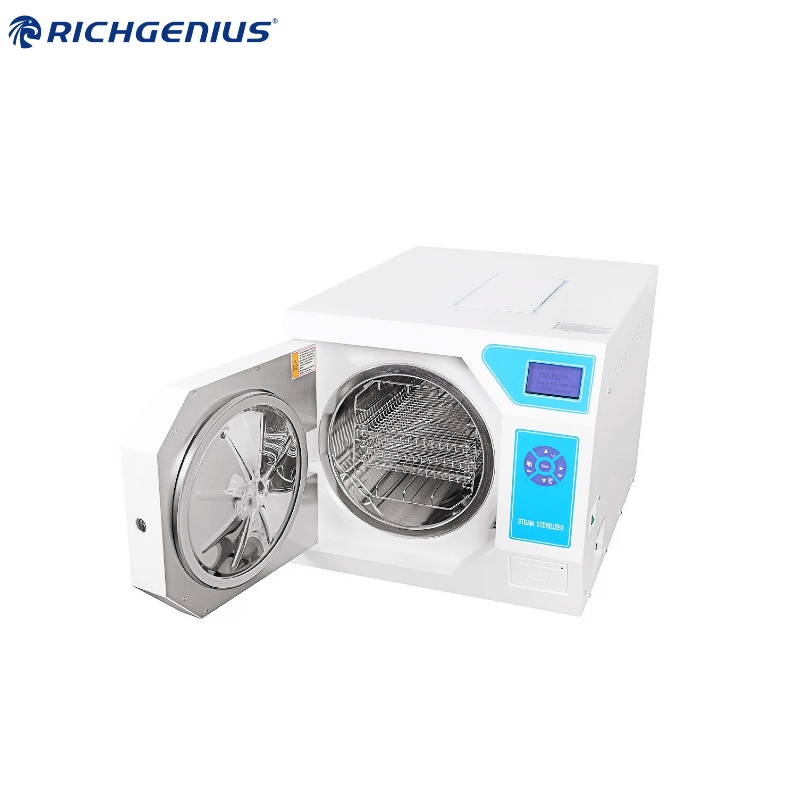

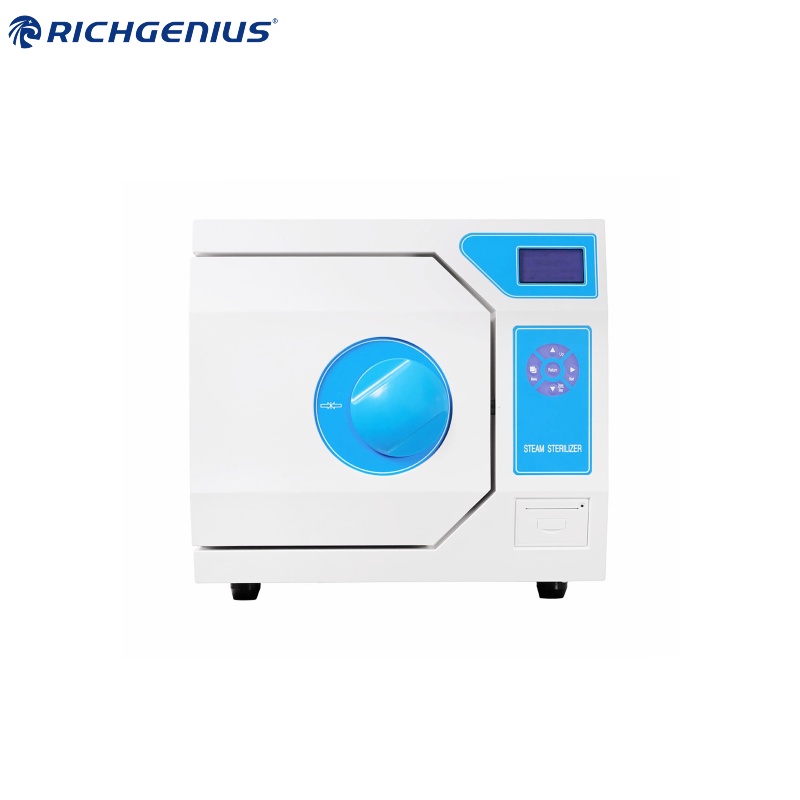

Tabletop Steam Sterilizer B Series (Pulsating Vacuum)
Tabletop steam sterilizers are suitable for high-temperature and high-pressure sterilization of items such as surgical instruments, dental appliances, dressings, glassware, and rubber products. Featuring a compact structure and easy operation, they are widely used in dental clinics, hospital departments, outpatient clinics, community health service centers, beauty institutions, and laboratories, making them an ideal choice for daily rapid sterilization in small and medium-sized medical institutions
Features

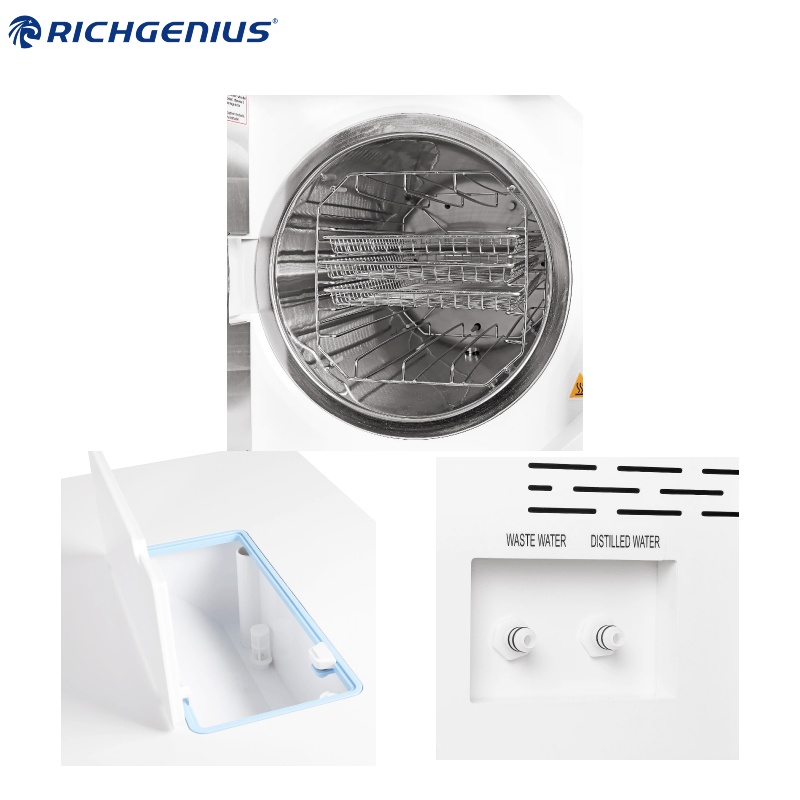

LCD display screen Electronic safety door interlock High-quality stainless steel cavity and sealing cover Microcomputer control with full-process automatic control Automatic fault detection High-altitude adaptive system, enabling automatic atmospheric pressure calibration 9 preset programs and 3 test programs
| Equipped with a standard test interface Compliant with European Class B standards, featuring three pulse vacuums The machine is equipped with comprehensive automatic protection functions Built-in high-efficiency independent steam generator, providing saturated steam quickly and stably Built-in printer and USB function Optional water quality testing function
|
Specification
Model | RGT-8B | RGT-12B | RGT-18B | RGT-23B |
Volume | 8L | 12L | 18L | 23L |
Power | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
Voltage | AC 110V 60HZ or AC 220V 50HZ | |||
Design pressure | -0.1~0.25MPa | |||
Design temperature | 139°C | |||
Rated working pressure | 0.22MPa | |||
Rated working temperature | 134°C | |||
Sterilization temperature range | 116 ～ 134°C | |||
Sterilization time range | 4 ～ 120 min | |||
Drying time range | 0 ～ 240 min | |||
Chamber Size (mm) | φ170x320 | φ200x355 | φ250x360 | φ250x450 |
Overall dimensions (mm) | 445x580x400 | 445x580x400 | 600x475x445 | 680x475x445 |
Packing dimensions (L×W×H) (mm) | 640x500x450 | 640x500x450 | 710x560x510 | 750x560x510 |
Gross weight / Net weight | 49/40kg | 51/42kg | 60/49kg | 63/51kg |
