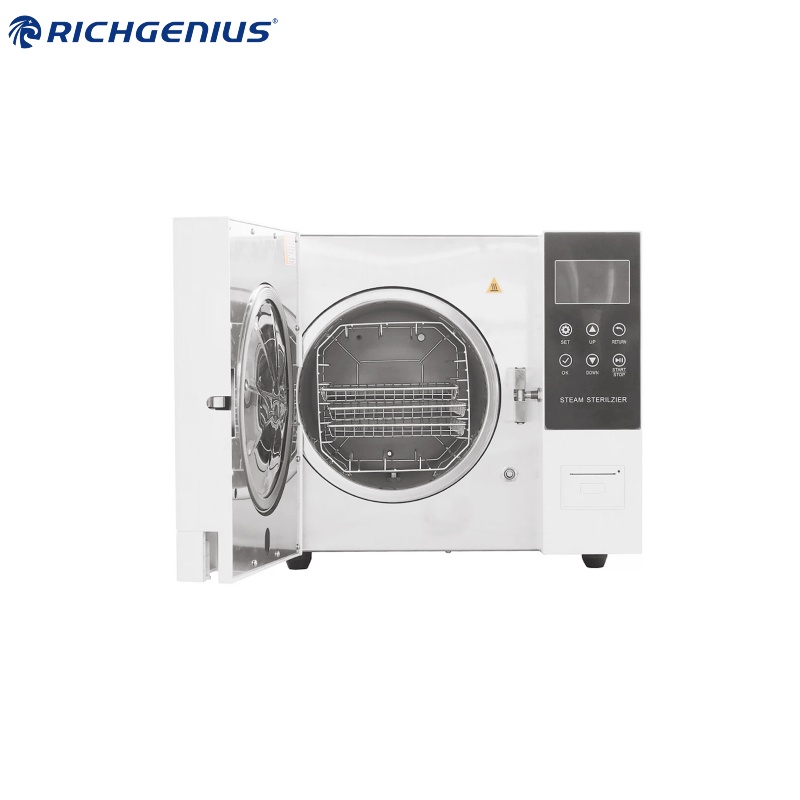

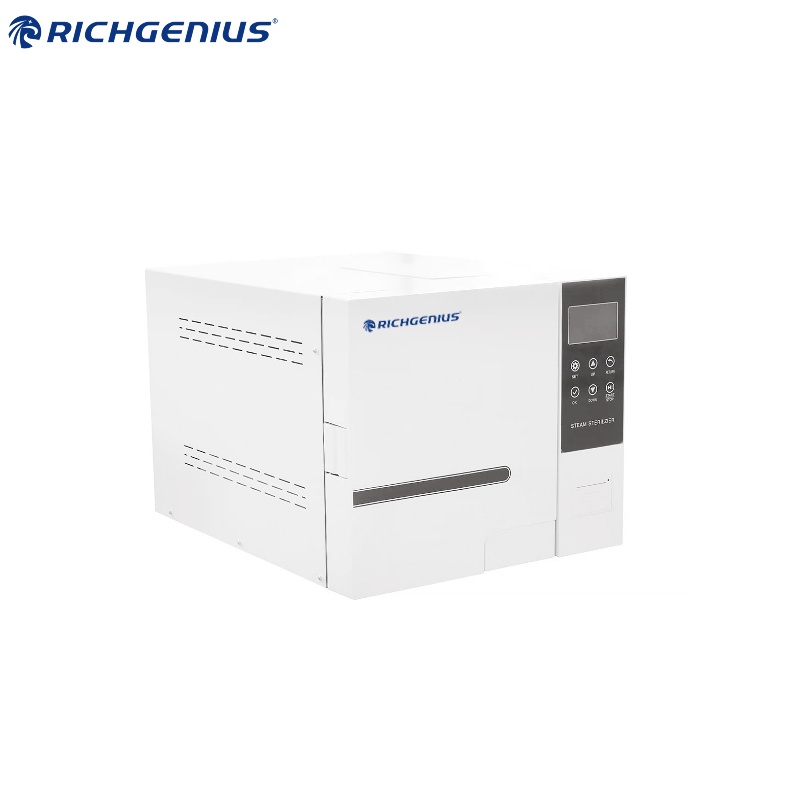

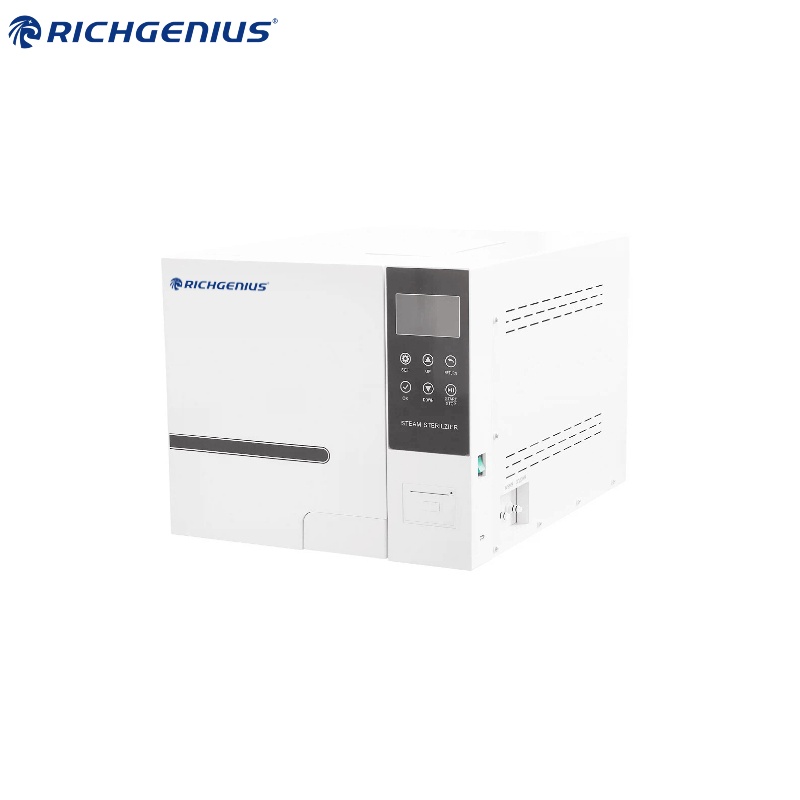

Tabletop Steam Sterilizer X Series (Pulsating Vacuum Bottom-Open)
Tabletop Steam Sterilizer X Series (Pulsating Vacuum Bottom-Open)Tabletop steam sterilizers are suitable for high-temperature and high-pressure sterilization of items such as surgical instruments, dental appliances, dressings, glassware, and rubber products. With a compact structure and easy operation, they are widely used in dental clinics, hospital departments, outpatient clinics, community health service centers, beauty institutions, and laboratories. They ar
Tabletop Steam Sterilizer X Series
(Pulsating Vacuum Bottom-Open)
Tabletop steam sterilizers are suitable for high-temperature and high-pressure sterilization of items such as surgical instruments, dental appliances, dressings, glassware, and rubber products. With a compact structure and easy operation, they are widely used in dental clinics, hospital departments, outpatient clinics, community health service centers, beauty institutions, and laboratories. They are an ideal choice for daily rapid sterilization in small and medium-sized medical institutions
Features
European Class B standard, three pulse vacuums Bottom-mounted manually pulled door design 4.3-inch full-color LED screen Electronic safety door interlock High-quality stainless steel cavity and sealing cover Microcomputer control, full-process automatic control, and automatic fault detection High-altitude adaptive system to realize automatic atmo-spheric pressure calibration | 9 preset programs, 3 test programs Equipped with a standard test interface The machine features comprehensive automatic protection functions and a door-opening design Built-in high-efficiency independent steam generator for rapid and stable supply of saturated steam Built-in printer and USB function Optional water quality testing function |
Specification
Model | RGT-18X | RGT-23X |
Volume | 18L | 23L |
Power | 2.2KW | 2.2KW |
Voltage | AC 110V 60HZ or AC 220V 50HZ | |
Design pressure | -0.1~0.25MPa | |
Design temperature | 139°C | |
Rated working pressure | 0.22MPa | |
Rated working temperature | 134°C | |
Sterilization temperature range | 116 ～ 134°C | |
Sterilization time range | 4 ～ 120 min | |
Drying time range | 0 ～ 240 min | |
Chamber size (mm) | φ250x360 | φ250x450 |
Overall dimensions (mm) | 590x505x450 | 640x505x450 |
Packing dimensions (L×W×H) (mm) | 710x560x510 | 750x560x510 |
Gross/net weight | 60/49kg | 63/51kg |
